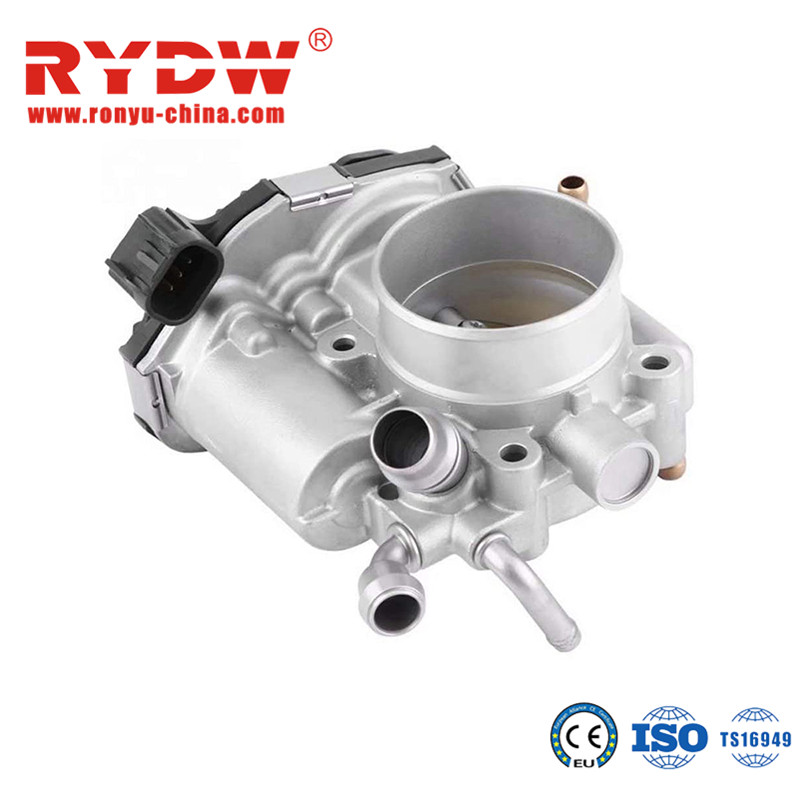

Quality America Auto Spare Parts Throttle Body Kit 0280750562

100% Brand New Aftermarket Throttle Body Assembly With Premium Quality Fit For Chevrolet Aveo Cruze Sonic Trax.

Solves Internal Electronic Sensor Failure And Excessive Wear And Tear Problem.

Cheap And Cheerful, Easy To Install With Related Installation Video, Durable, Engineered From High-Quality Materials To Improve Reliability And Durability.

Manufactured And Tested To The Strictest OE Standards For Unparalleled Performance.

Every Product Must Take Inspected And Tested Multiple Times Before The Shipment.

According To The Original Factory Specifications. Built To Strict Quality Control Standards. Easy Installation. Stable Characteristics, High Reliability. Aftermarket Products With Premium Quality.

Regulates The Proper Volume Of Airflow Into The Engine Which Is Essential To The Mixture Of Fuel And Air In The Engine.

If You Are Experiencing Engine Stalling, Failing To Start, Electronic Throttle Warning Light Came On, Hesitation Or Power Surging On Acceleration On Your Vehicle Then You May Have a Problem With Your Vehicle's Throttle Body.

This Electronic Throttle Body Is Manufactured To The Same Specifications As The Original Throttle Body.

The Throttle Body Features An Electronically Controlled Butterfly Valve Essential To The Operation Of Your Vehicle.

While This Is Not a Genuine OEM Part, It Will Fit, Work And Appear Exactly Like The Factory Part.

How To Replace Throttle Body:

Step 1: Remove The Air Cleaner And Duct Hose Assembly Using The Common Screwdriver. Disconnect The Electrical Connector On The Mass Air Flow By Pulling Out The Plug. Disconnect The Intake Air Temperature Sensor Found In The Air Duct.

Step 2: Disconnect The Idle Air Control On The Side Of The Throttle Body By Pulling The Electrical Connector Out. Disconnect The Throttle Position Sensor Opposite The Throttle Cable Levers.

Step 3: Disconnect The Throttle Cables By Turning The Throttle Lever On The Throttle Body All The Way Open By Hand And Then Removing The Now Slackened Cables From The Throttle Lever.

Step 4: Remove The Heated Water Hoses From The Bottom Of The Throttle Body If There Are Any (This Is Vehicle Dependent). Use The Needle Nose Pliers To Remove The Clamps By Squeezing The Clamps And Pulling Them Off. Pull The Hoses Off. Not All Vehicles Have These, Although There Are a Few That Do.

Step 5: Remove The Four Bolts Running Through The Throttle Body And Into The Intake Manifold. Use Appropriate -Inch Drive Socket And Ratchet. Lift The Throttle Body Off The Intake Manifold. Protect The Metal Gasket That Is In Between The Throttle Body And Intake. This Gasket Must Be Reused. Install The New Throttle Body And Components In Reverse Order Of Removal.
